Camera

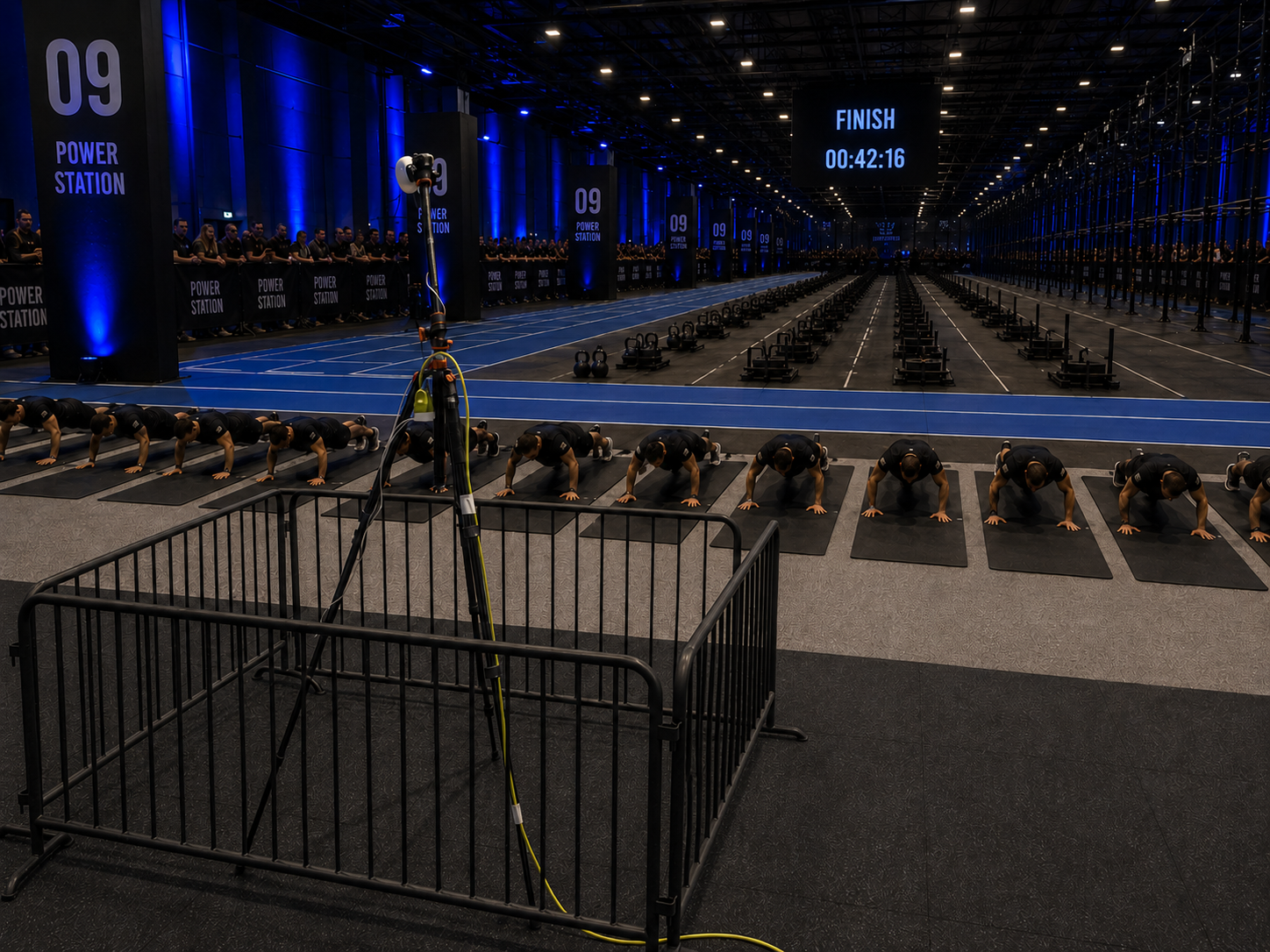

Five Ubi G6 Instant cameras will be set up at the power stations for timing purposes for 25 participants per heat. The exact positions of the cameras can be announced as soon as the layout of the race tracks and the positioning of the power station have been finalised.

Number is based on a maximum of 10 stations per row and the camera being positioned 2 metres in front of the power mats.

The cameras must be protected by barriers to prevent them from being knocked over or moved out of position by athletes or judges.

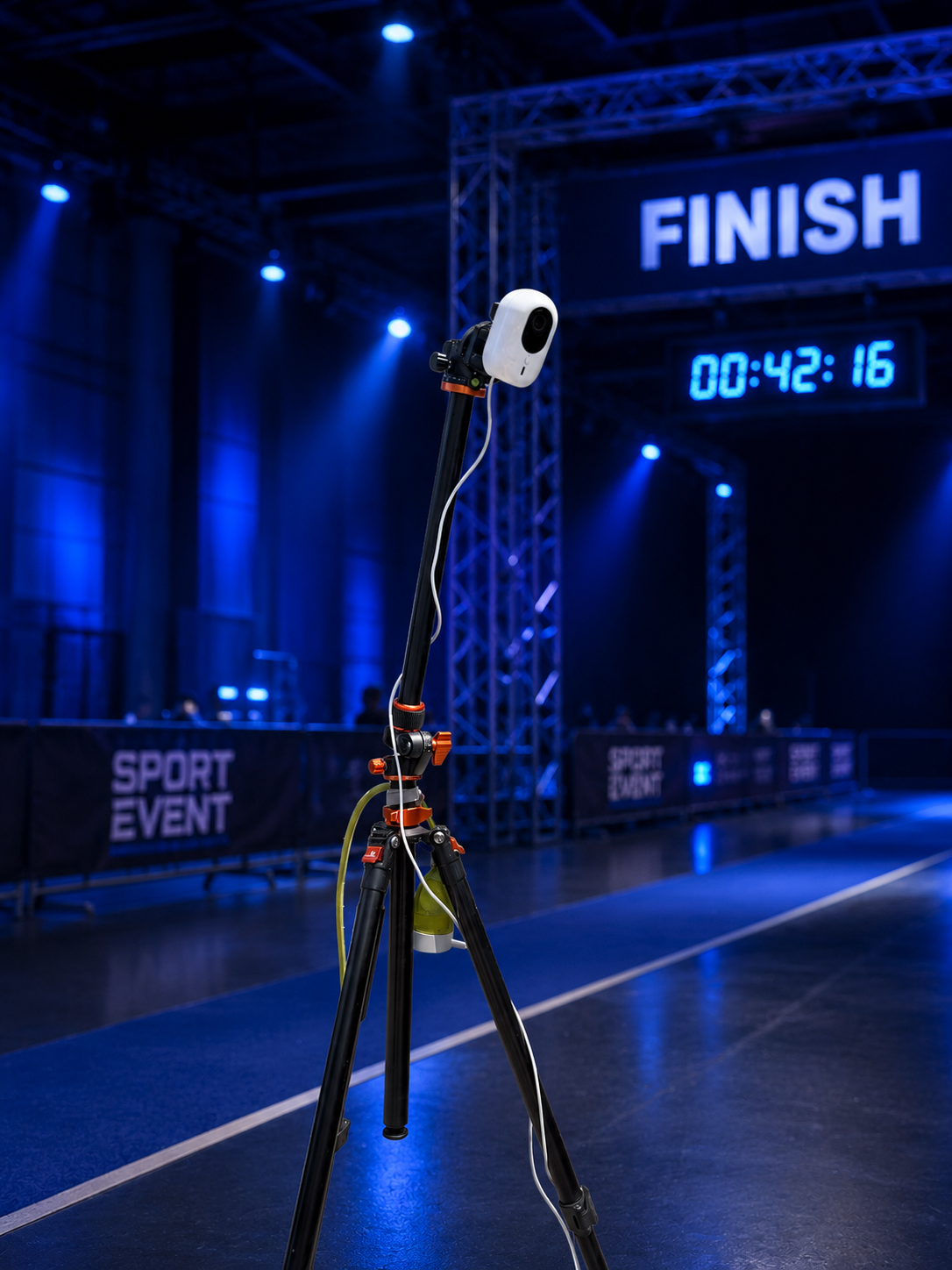

Each camera requires a tripod with a minimum height of 2 metres, a freely adjustable and swivelling camera mount, and a power socket at camera height. In addition, at least one LAN cable connection from the power station to the timing control centre is required.

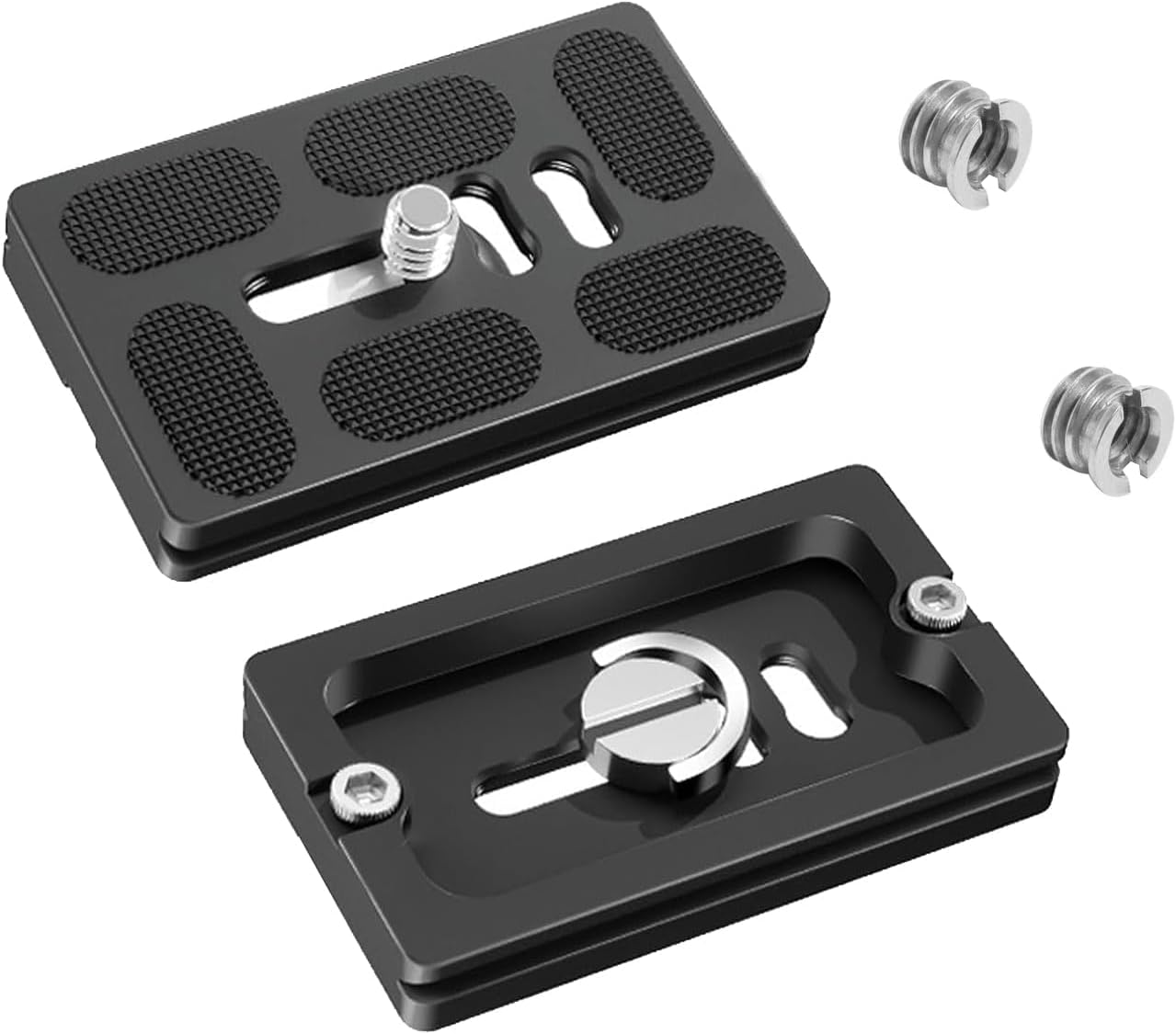

The cameras are mounted either using a standard quick-release plate or a 1/4-inch thread (UNC).
